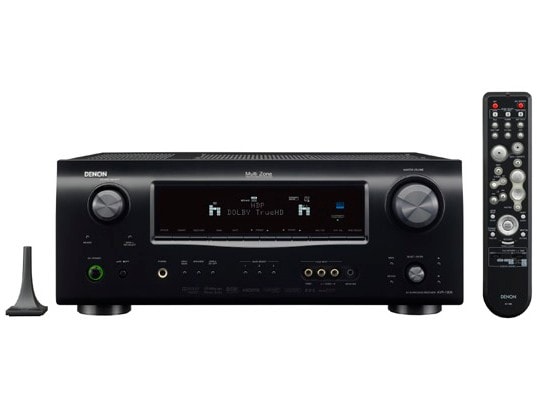

Ampli tuner audio vidéo DENON AVR-1909 BLACK

Power amplifier section
Rated output *THD figures are power amp stage values.
Front L/R :
90 W + 90 W (8 ohms, 20Hz - 20kHz, THD 0.08 %)
120 W + 120 W (6 ohms, 1 kHz, THD 0.7%)

Centre :
90 W (8 ohms, 20Hz - 20kHz, THD 0.08 %)
120 W (6 ohms, 1 kHz, THD 0.7%)

Surround L/R :
90 W + 90 W (8 ohms, 20Hz - 20kHz, THD 0.08 %)
120 W + 120 W (6 ohms, 1 kHz, THD 0.7%)

Surround Back L/R :
90 W + 90 W (8 ohms, 20Hz - 20kHz, THD 0.08 %)
120 W + 120 W (6 ohms, 1 kHz, THD 0.7%)

Preamplifier section
Input sensitivity/impedance : 200 mV / 47 kΩ/kohms
Frequency response 10 Hz ~ 100 kHz — +1, –3 dB (DIRECT mode)
S/N Ratio 100 dB (IHF-A weighted, DIRECT mode)

FM section
Tuning frequency range 87.5 - 108.0 MHz
Usable sensitivity 1.0 μV (11.2 dBf)

AM section
Tuning frequency range 522 - 1611 kHz
Usable sensitivity 18 μV

General
Power supply AC 230 V, 50 Hz
Power consumption 445 W (Standby 0.3W)
Dimensions (W x H x D) 434 x 171 x 377 mm
Weight 11.5 kg


IN
HDMI 3
Component 3
S-Video 3
Composite 4
Analog Audio (Tuner included) 8
Analog EXT. Input 7.1ch
Digital OPTICAL 2
Digital COAXIAL 2

OUT
HDMI Monitor 1
Component Monitor 1
S-Video Monitor 1
REC 1
Composite Monitor 1
REC 1
Analog Audio REC 2
Zone 2 1
Audio PRE out (Sub woofer) 1
Digital OPTICAL 1
Others Dock Control Port 1
FM Tuner Antenna 1
AM Tuner Antenna 1
Remote In/Out 1
